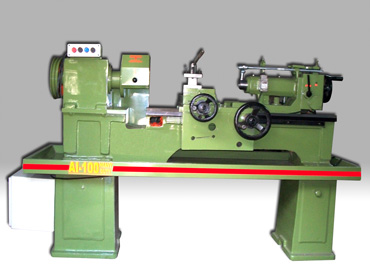

Model - AI 100 Heavy Duty
Main Spindel Bore |
47 mm |
Main Spindel Power |
5 H.P.+ 7 H.P. 1440 Rpm. |
Second Spindel Power |
1 H.P. 1440 Rpm. |
Main Spindel RPM |
As. Per Requird |
Main Length |
5.25' feet |
Main Base Width |
280mm |
Machine Hight Of Center |
168 to 170 mm |
Ram Diameter |
60 mm |
Ram Taper Nose |
MT4 |
Ram Travel |
125 mm |
Driling Length Capcity |
100 mm |
Max. Driling Diameter |
45 to 50 mm |
Speed Control Drive With Panel Board For
5-7 H.P Motor & 1 H.P Motor
Tail Stroke Mounted Limited Switch
Extre Accessories
Hand Operated Chuck & Chuck Plate
Coolant Pump & Coolant Tank
